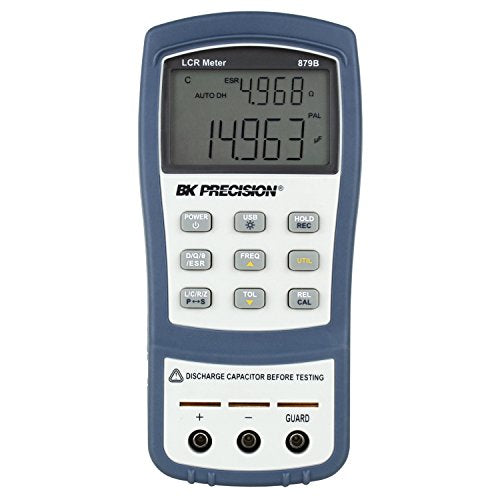

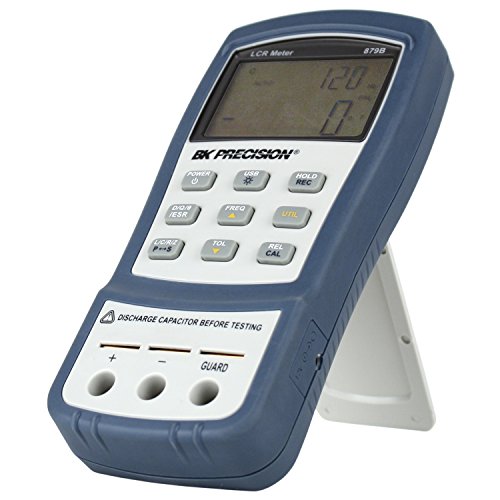

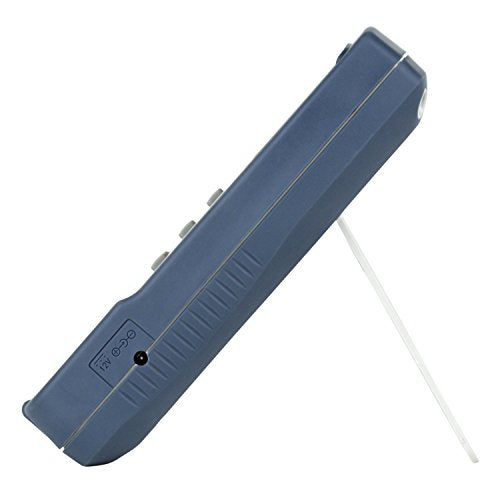

B&K Precision 879B Dual Display Handheld Deluxe Universal LCR Meter with Backlit Display

Brand: B&K Precision

Color: Blue

Features:

• 40000 Counts resolution on primary and 10,000 counts resolution on secondary display
• L, C, R and Z primary Measurements; automatic calculation of secondary parameters D, Q, Theta, and ESR
• 0.5 Percent basic accuracy
• Relative mode; data hold and min/max/average recording
• 1 Year warranty

Publisher: B&K Precision Corporation

Details: 40000 Count handheld LCR meters measures inductance, capacitance, and resistance quickly and precisely. The meters also includes handy functions such as data hold, Minimum/Maximum/Average recording, tolerance sorting, and relative mode. Measurement data can continuously transfer to a PC via the meter's mini USB interface, using either the provided data logging software or SCPI commands sent from a custom program. Fast auto range design for rapid, easy component measurements. USB (Virtual COM) interface. Software for datalogging and front panel emulation available as free download. Selectable auto-power-off options. Applications: Passive component trouble shooting. Electronic assembly. Quality control (component sorting). Measurement parameters: L/C/R/Z/D/Q/Theta/ESR. Test frequency accuracy is 0.02 percent of actual test frequency: 100 Hz, 120 Hz, 1 KHz, 10 kHz (test setting), 100 Hz, 120.048 Hz, 1 kHz, 10 kHz (actual frequency). Tolerance mode: 1 percent, 5 percent, 10 percent, 20 percent. Backlit display: yes Test signal level: almost equal to 0.6 Vrms. Measuring circuit mode: Series mode/Parallel mode. Basic accuracy: 0.5 percent. Ranging mode: Auto. Measuring terminals: 3 terminals with sockets. Measurement rate: 1.5 reading /second (range auto search not included). Response time: almost equal to 680 ms/DUT. Auto power-off: 5, 15, 30, 60 minutes, None. Operation temperature: 32 degree F to 104 degree F; 0-70 percent R.H. Storage temperature: -4 degree F to 122 degree F (-20 to +50 degree C); 0-80 percent R.H. Low battery indication: almost equal to 6.8 V. Battery life: almost equal to 16 hours using Alkaline Battery at 1 kHz with 100 ohm DUT, with backlight off. Power requirements: 1) DC 9V Battery, 2) Ext. DC Adaptor: DC 12 Vmin -15 V Maximum (Load 50 mA Minimum.). Measures 7-1/2" length by 3-1/2" width by 1-19/32" height. 1 year warranty.

Package Dimensions: 2.6 x 6.7 x 9.9 inches
