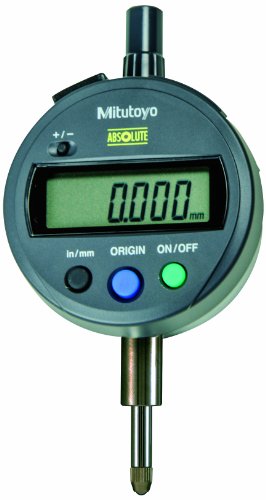

Mitutoyo Absolute Digimatic Indicator ID-S-Type Lug Back #4-48 UNF Thread 3/8" Stem Dia 0-0.5" Range 0.0001" Resolution +/-0.00012" Accuracy

Brand: Mitutoyo

Features:

• Electronic indicator measures 0 to 0.5" (0 to 12.7mm) with 0.0001" (0.001mm) resolution and + or - 0.00012" accuracy, for measuring short, linear distances in mechanical engineering, machining, and manufacturing applications
• LCD displays in both inches and metric units, and indicator has a lug back for mounting from the rear of the indicator
• Absolute electrostatic capacitance-type linear encoder for accurate measurements
• 3/8" diameter stem and a #4-48 UNF contact point thread mount
• Ingress Protection certified IP42 for protection against objects greater than 1mm and dripping water

Publisher: Mitutoyo

Details: The Mitutoyo 543-793 Absolute Digimatic electronic indicator gauge, ID-S series, is for measuring short, linear distances in mechanical engineering, machining, and manufacturing applications. It has a measurement range of 0 to 0.5" (0 to 12.7mm), a resolution of 0.0001" (0.001mm), and an accuracy of + or - 0.00012". The LCD displays in both inches and metric units. This model has a lug back for mounting from the rear of the indicator. An Absolute electrostatic capacitance linear encoder helps prevent overspeed errors for taking accurate measurements. This unit has a 3/8" diameter stem and a #4-48 UNF contact point thread mount. This model is Ingress Protection certified IP42 for protection against objects greater than 1mm and dripping water. Additional functions for this indicator include origin set, zero set, counting direction switching, and alerts for low voltage, counting value composition error, and overflow error. The measuring force is 2.0 Newtons (N) or less. It has a battery life of approximately 20,000 hours of normal use. This unit comes with an SR-44 battery. This gauge offers serial data output (using optional SPC cables, sold separately), which increases speed and reliability of digital measurement records. Specifications Range 0 to 0.5" (0 to 12.7mm) Resolution 0.0001" (0.001mm) Accuracy + or - 0.00012" Measuring force 2.0N or less Stem 4-48UNF contact point thread mount with 3/8" diameter spindle Face LCD displays in both inches and metric units, with lug back Data output Yes Dimensions 103.9 x 59 x 27.5mm (H x W x D), not including lug Shipping weight 0.5lb. Standards IP42 Power source SR-44 battery (included) H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation. Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL. What's in the Box? Mitutoyo 543-793 indicator gauge SR-44 battery

Package Dimensions: 7.5 x 4.2 x 3.0 inches
