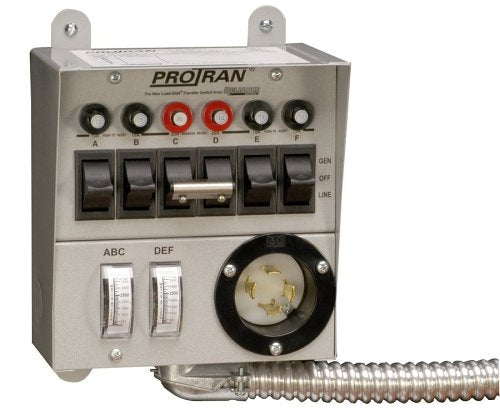

Reliance Controls 20216 Pro/Tran 6-Circuit 20-Amp Indoor Generator Transfer Switch

Brand: Reliance Controls

Color: Gray

Features:

• Designed for fast installation in both residential and commerical applications
• 18-inch flexible conduit whip easily attaches to load center
• Maximum generator running watts: 5,000
• Maximum single-pole circuits: 6, Maximum double-pole circuits: 1
• Features rugged powder-coated steel cabinet, six combination knockouts, resettable branch rated circuit breakers and non-defeatable double-throw switches. MAX. COMBINED LOAD @ 125 VAC : 40

Binding: Lawn & Patio

Publisher: Reliance Controls

Details: Product Description The Reliance 20216A Control Pro/Tran Indoor Transfer Switch is easy to install and operate. The purpose of a transfer switch is to connect a secondary power source, like your generator, to circuits in your home or building that are wired into the electrical system. It is designed to enable the wiring system of the building to accept the full power of a portable generator, which can run multiple electrical appliances and devices during a power outage. The transfer switch ensures that you can safely use back up power during a power outage without having to worry about back feeding the utility line. In an emergency situation you might not think to shut off the main power source, the transfer switch makes it so you do not have to worry about that. Each individual circuit can be transferred separately and only as needed. This transfer switch features 6 15-amp single pole circuit breakers and 1 20-amp single pole circuit breakers. This model includes a separate flanged inlet for direct generator connection in a dry location. The recommended cord size for this switch is a 12-gauge cord. Since 1909, Reliance Controls Corporation has contributed more innovations that any other single manufacturer and has been awarded over 85 patents on manual transfer switches, time switches and accessories. Reliance Controls Corporation specializes in the manufacturing of a wide variety of electrical products. The primary product line consists of heavy duty time clocks and controls, generator accessories, transfer switches and transfer panels for portable generators and inverters. And after over a century of innovation, Reliance Controls Corporation has built an enviable reputation for high quality, superior engineering and exceptional customer service. From the Manufacturer 6-Circuit 20-Amp Transfer Switch for Generators up to 5000 Running-Watt. For generators with NEMA L14-20 power outlets. The safe, code-approved way to provide emergency power to your home or business during a power outage. The proper connection between a portable generator and selected circuits in a load center allows the user to efficiently and easily operate appliances such as a furnace, refrigerator, sump pump, TV, well pump, lights and more. Power can be manually transferred for each appliance independently at users choice without danger of backfeeding the electrical utility. Internal wiring compartment allows for optional hardwiring to remote power inlet boxes. Dual-Wattmeters monitor load in generator. Completely pre-wired with individual wires marked by circuit. Indoor surface-mount design. cUL 1008 listed. Made in USA. 5 year warranty

Package Dimensions: 12.8 x 11.5 x 5.0 inches
