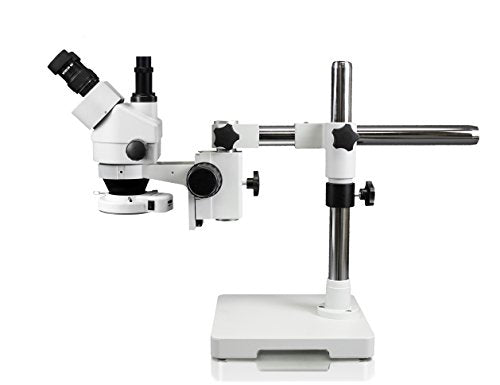

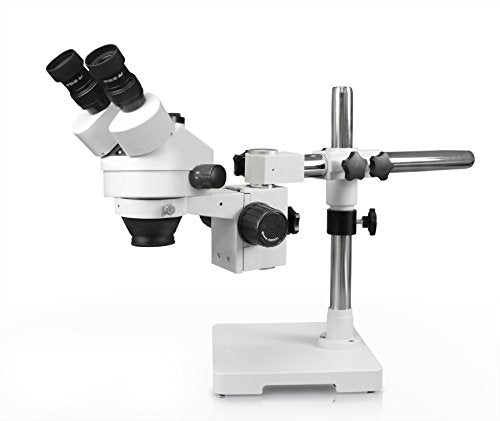

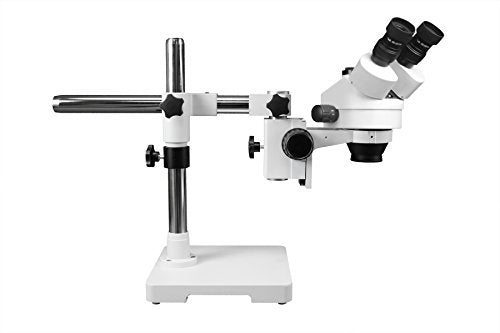

Vision Scientific VS-3F-IFR07 Simul-Focal Trinocular Zoom Stereo Microscope, 10x Widefield Eyepiece, 0.7X—4.5X Zoom Range, 7X—45x Magnification Range, Single Arm Boom Stand, 144-LED Ring Light

Brand: Vision Scientific

Features:

• 45° inclined trinocular head that rotates 360°. The Simul-Focal trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed
• 7x—45x standard magnification range, and also has a field of view of 2 ½” (65mm). The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
• Single arm boom stand offers a long and flexible working distance, that is capable of covering large-and-wide, horizontal and vertical areas; while the solid-steel, table-top, rectangular base provides a solid foundation to fit your observational needs
• Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control. Robust and versatile, it is the perfect microscope for laboratory and industrial application, and is designed to provide outstanding value without compromising performance
• 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs

Binding: Electronics

Publisher: Vision Scientific

Details:

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.

The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.

Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

Specifications

• Head: Trinocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x
• Working Distance: Up to 8” vertical; Up to 4” optical; 16” boom arm adjustable
• Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
• Stand: Single arm boom stand
• Light Source: 144-LED ring light with intensity control

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Single arm boom stand
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 144-LED ring light with intensity control
• Power adaptor

Package Dimensions: 24.0 x 20.0 x 14.0 inches
