Vixen Air Suspension Kit On Board System 200psi Compressor 3 Gallon Tank For Boat Lift Towing Lowering Leveling Bags Onboard Train Horn

Brand: Vixen Air

Features:

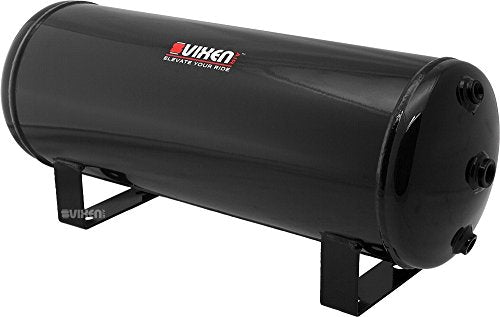

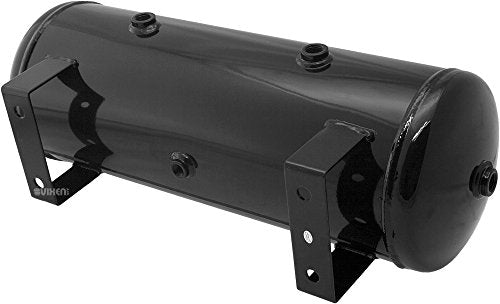

• Tank capacity: 3 gallon (12 liter)

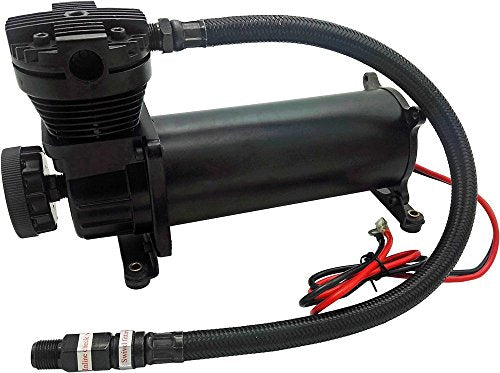

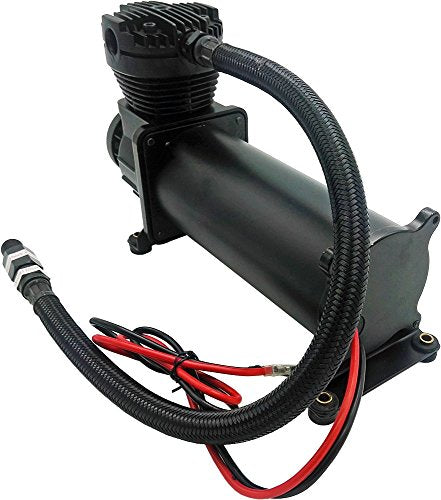

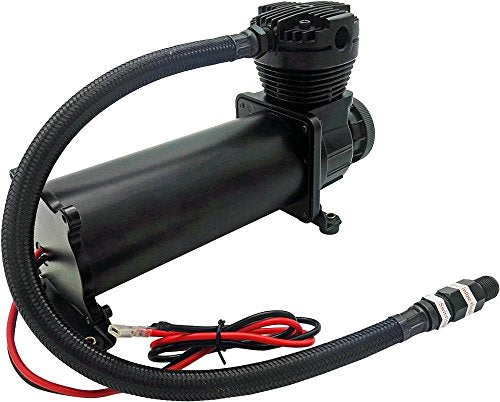

• 12 volt 200 PSI Compressor with Remote Filter
• Anti-Corrosion Coating
• Precision Welded

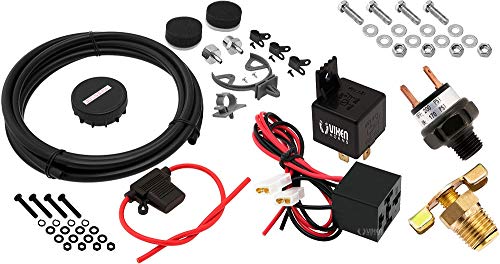

• Remote Filter, Pressure Switch, Drain Valve, Relay with Pre-wired Plug and Mounting Hardware Included

Publisher: Vixen Air

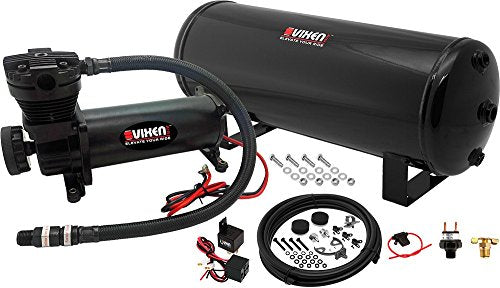

Details: This on-board system is specifically designed for air suspension but can also be used with any high-pressure air horn or power tool that requires an on-board air system. Comes with a 3 Gallon steel air tank featuring 7 air ports, one 200 PSI heavy duty black color air compressor with remote filter kit, pressure switch, drain valve, heavy duty 40A relay with pre-wired plug, 40A in-line fuse and mounting hardware. This system will set your vehicle above the rest. Air Compressor 200 PSI Air Compressor Black 12V Permanent Magnetic Motor Maximum Working Pressure: 200 PSI Duty Cycle: 100% @ 100 PSI Amperage Draw: 23A Flow Rate: 1.8CFM @ 0 PSI Sealed Construction Automatic Reset Thermal Overload Protector 3/8" NPT Stainless Steel Braided Leader Hose with 3/8" NPT Check Valve Intake Air Filter with Remote Installation Kit (10 FT Hose and Two replacement filter elements Included) 40A 4-PIN Relay with Pre-wired Plug 40A In-line Fuse with Waterproof Holder Mounting Hardware Included Dimensions: 13-¾" L x 4" W x 6-¾" H Air Tank 3 Gallon Steel Air Tank Capacity: 3 Gallon (12 Liter) Pressure Rating: 200 PSI 7 Ports: 4 x 3/8" NPT, 3 x ¼" NPT For high air flow applications such as Air Suspension and Train Horns Anti-Corrosion Coating Precision Welded Included with this kit: 3 Gallon Steel Air Tank 170-200 PSI Pressure Switch ¼" NPT Wing Style Drain Valve Mounting Hardware Dimensions: 19-¾" L x 8-¾" H, 7" Dia
