weivision Super Hd 1080P Car 360 Degree Bird View Surround System DVR Record Backup Camera Parking Monitoring with Sony Sensor

Brand: weivision

Color: 360 birdview for car

Features:

• Weivision 360° Around View Camera System can get real surround vision of driving, help to avoid blind spots and secure driving safety! It’s designed for car pick up all within 22ft vehicles, etc, easy to install and calibrate.
• Weivision 360° Around View Camera System helps a lot in various driving situations, such as reverse parking, eliminating blind spots and turning at narrow roadnarrow road

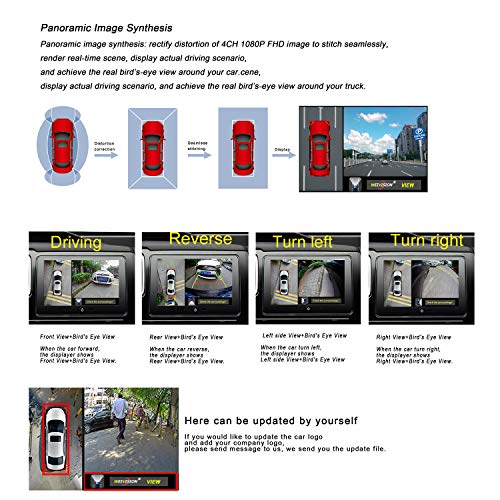

• Provides bird's eye view of all blind spots,Avoid Potential dangers hidden among blind areas.
• 4CH 1080P 190° wide angle fish eye camera, horizontal viewing angle >170°,Max.32GB for recording, Cycle recording, 4CH 1080P recording, HD 1080P video output
• Support 4CH inputs, customization available according to your vehicle requirements. If you want to OEM, please contact our service

Publisher: Weivison Technology

Details: 【PLEASE BE NOTED】Please comfirm that there is a in-dash monitor or other LCD monitor which can input and display a PAL or NTSC video(RCA interface) in your car.
The video output of this product only fit for the Monitors which with RCA interface,
please check your car's monitor carefully.
(Generally, the video input interface of "original car monitor" is LVDS or other else. And the car monitor(DVD, GPS Navigation) which you bought separately has a RCA interface).
If your monitor don't have RCA interface, you need a video decoder. or please contact us.

Specifcations

Host
CPU : Quad-core Cortex -A7
FLASH : 4GB
DDR : 512MB
Languege : English, Chinese, Russian, Spain, Korea, Geman, Japan, Portuguese
Working voltag range : 9- 16v
Working current : 400mA
Standby current : < 10mA
Working temperature range : -30℃~80℃
Working humidity ： 40%~80%

Camera

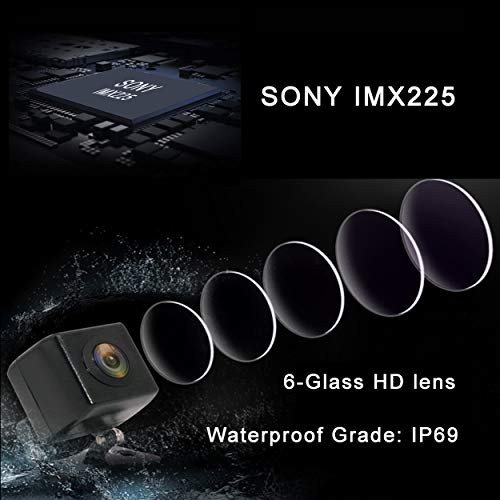

Camera Chip sensor Sony 225
Sensor size : 1/3 color sensor
Effective Pixels : 1280(h)"960(v)
Horizontal resolution : 960H
Dynamic range:> 78dB
Video output : CVBS-PAL/NTSC
Waterproof : IP67
Video resolution : 2560*1440
Working voltage : 5v
Working current< 100mA

Package Dimensions: 11.4 x 7.9 x 7.2 inches
