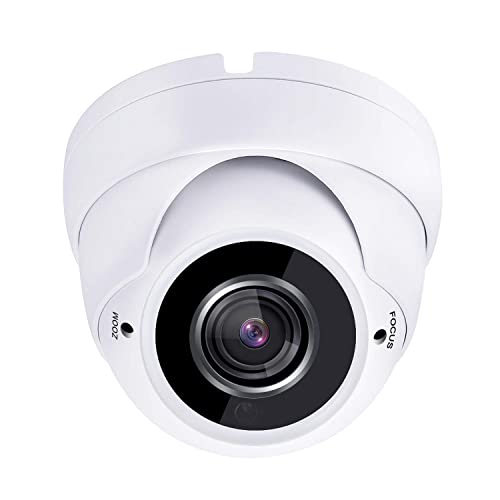

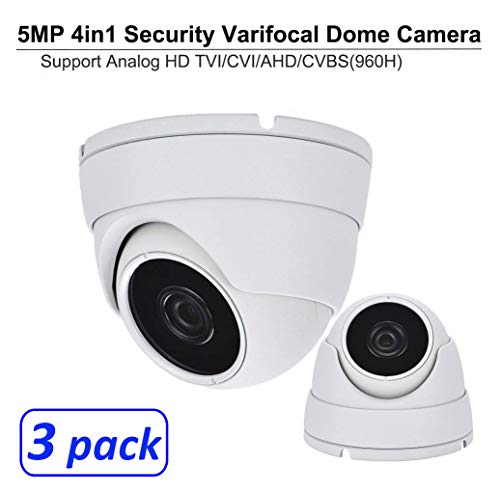

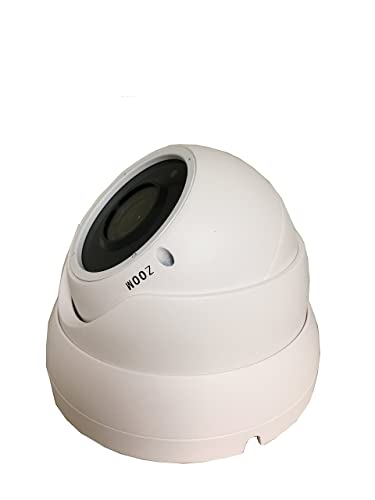

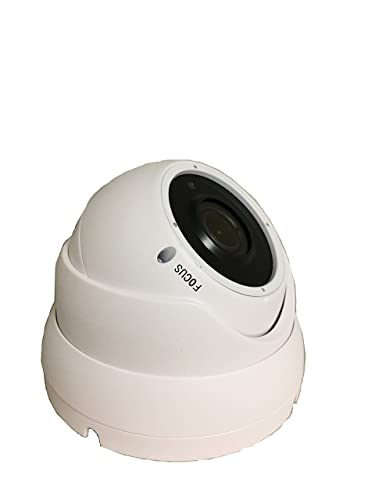

101AV 5 Megapixel 4in1 TVI/AHD/CVI/CVBS(960H) 2.8-12mm Lens Security Surveillance Dome Camera DWDR IR Cut OSD menu for Indoor Outdoor CCTV Home Office (White) (3 Pack)

Brand: 101 AV Inc

Color: White

Features:

• 5 Megapixel Dome Camera with Progressive Scan CMOS Sensor and TVI / HD-CVI / HD-AHD / CVBS
• 2.8-12mm Varifocal Lens, Indoor Outdoor IR Small Eyeball Dome Camera
• OSD Menu,2D DNR.DWDR,True Day/Night,Support UTC Function

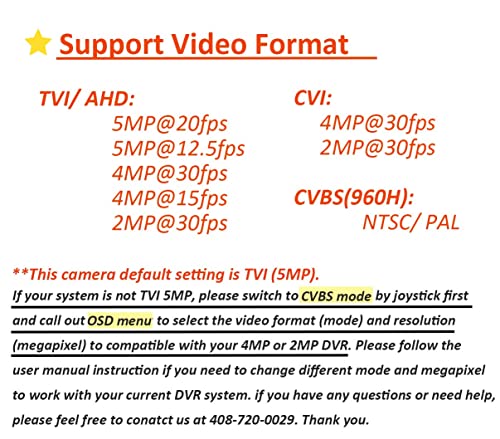

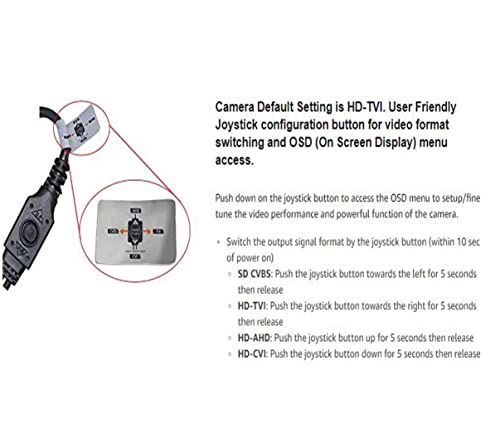

• Default Setting is HD-TVI (5MP), if your system is not TVI 5MP, please switch to CVBS mode by joystick first and call out OSD menu to select the video format (mode) and resolution (megapixel) to compatible with your DVR.
• Please follow the user manual instruction about how to switch to different mode and megapixel to work with your current DVR system. If you have any questions or need help, you are always welcome to contact us Monday-Friday 8am-5pm PST (Pacific Time). Thank you.

Binding: Electronics

Part Number: 5MP 2.8-12mm Dome Camera (White)

Details:

*This 5MP Camera can also be switched to 4MP or 2MP video format to compatible with your 4MP or 2MP DVR. Please follow the instruction about how to switch to different megapixel mode to work with your current DVR system.or please contact us if you have any questions or need help. Thank you.

Description:

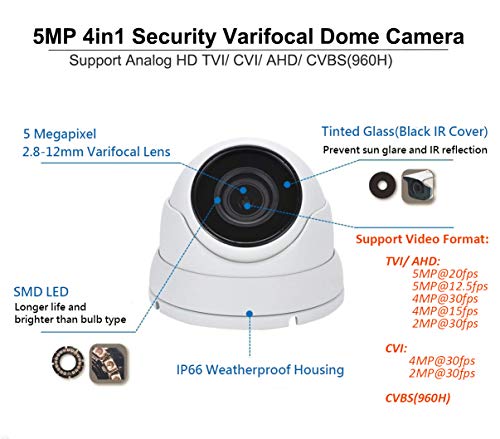

This 4in1 professional IR dome security camera employs 1/2.5″ CMOS Image Sensor with 5MP Resolution and an advanced circuit design.

It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS and adjust the video setting. It also has DWDR function.

Built-in 2.8-12mm varifocal lens, effectively extend your observation range. up to 30 meters IR range, The IR will turn on automatically during the night time.

The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It's easy to install. It can protect your office or home effectively.

Specification:

Model# 5VDT-2812W

Image Sensor: 1/2.5" 5 megapixel CMOS Sensor

Signal System: NTSC

Resolution: 5MP/ 4MP/ 2MP (1080p)

Mini Illumination: 0.001 Lux / F1.2

Lens: 2.8-12mm Manual Zoom Lens

DWDR: On/Off

White Balance / Gain Control: Auto

S/N Ratio: More than 50 dB

Synchronous System: Internal

Video Output: AHD/CVI/CVBS/TVI

Weatherproof: IP66

Operation Temp: 14°F~122°F (-10°C~50°C)

Storage Temp: 14°F~140°F (-10°C~60°C)

Dimensions (mm): 131(W) x 93(H)

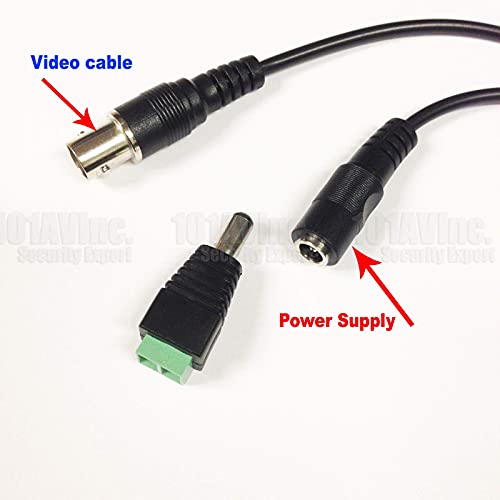

Power: DC12V/ 750mA

IR Range: 30m IR Range

Infrared Lamps: Night/Day ON/OFF

Weight: 800g

What's in the box?

5MP 4in1 True-HD IR Dome security camera x 3; Screws.

EAN: 0679845007354
