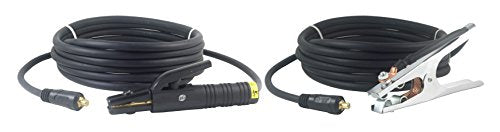

150 Amp Welding Leads Assembly Set - Dinse 10-25 Connector - #4 AWG cable (15 FEET EACH LEAD)

Brand: SÜA

Color: Black

Features:

• Heavy Duty Welding Lead Assembly manufactured with Made in USA Flex-A-Prene highly flexible cable. Cable Size: #4 AWG - 0.343" O.D.

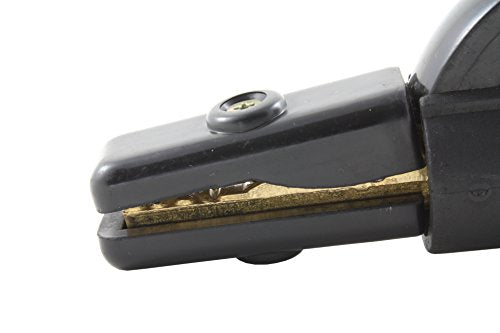

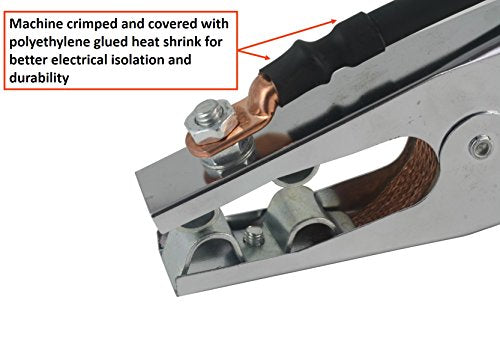

• Electrode Holder compatible with AF-3. Heavy Duty Nylon body. High conductivity jaws. High strength coiled spring for a maximum grip of the electrode. Holds Electrodes up to 1/4". Ground Clamp compatible with EG-300. Constructed in Zinc-Plated Steel. Large hex screw cable connection assures a tight and safe cable connection. It has a large contact area for an effective ground connection. Its design eliminates arc blowing and facilitates fast grounding spot changing

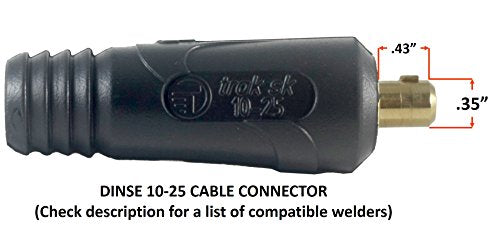

• Dinse 10-25 Cable Connector. ***Please check connector size in the picture and compare with your welder´s Connector/Receptacle to make sure it fits***
• RATED: 150 AMP @ 60% Duty Cycle. ***Please Check you welder´s maximum amperage and look for a cable assembly that matches or exceeds that amperage rating***
• Choose the Cables Length from the Menu. These leads are assembled to customer specifications the same day the order is received, they are packed and shipped on a cardboard box or a white USPS Flat Rate Package. You will receive a ready to use fully assembled lead, no tools required.

Part Number: SET300-CX0020-FP1025_15

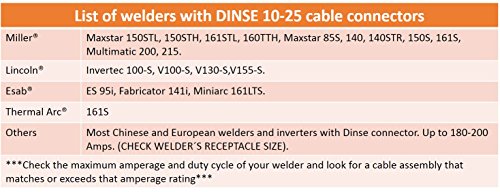

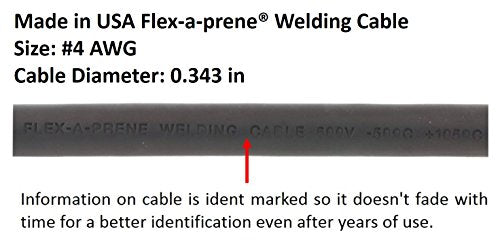

Details: This welding lead is assembled using Highly flexible, Made in the USA, Flex-A-Prene cable. All our cable assemblies use over-calculated Electrode Holders, Ground Clamps, and Connectors with an amperage capacity always higher than the assembly amperage rating. This prevents over-heating and increases safety. Information on cable is ident marked so it doesn't fade with time for a better identification even after years of use - Resists abrasion, cut, tear, flame, grease, oil, and water. The is the only welding cable that currently meets SAE J1127. INSULATION: EDPM jacket and paper separator - TEMP RANGE: -50°C to +105°C (-58°F to 221°F) - Rated 600 Volts. ***Before you buy please double-check the type and size of the cable Connector/Receptacle in your welder, Also check the maximum Amperage and duty cycle of your welder and look for a cable assembly that matches or exceeds that amperage rating*** List of welders with DINSE 10-25 cable connector: Miller: Maxstar 150STL, 150STH, 161STL, 160TTH, Maxstar 85S, 140, 140STR, 150S, 161S, Multimatic 200, 215. Linconl: Invertec 100-S, V100-S, V130-S,V155-S. Esab: ES 95i, Fabricator 141i, Miniarc 161LTS. Thermal Arc: 161S Others: Most Chinese and European welders and inverters with Dinse connector. Up to 180-200 Amps. (CHECK WELDER´S RECEPTACLE SIZE).

EAN: 0600136289241

Package Dimensions: 10.2 x 10.2 x 5.5 inches
