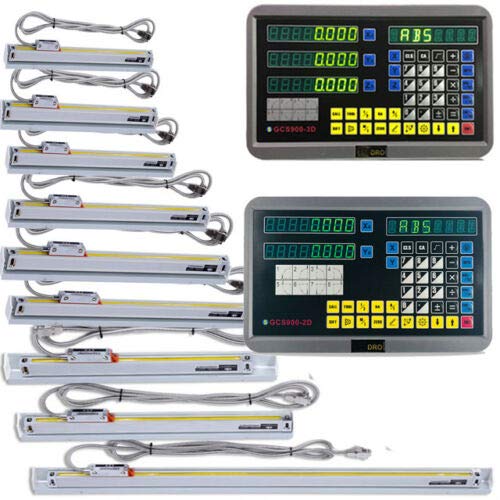

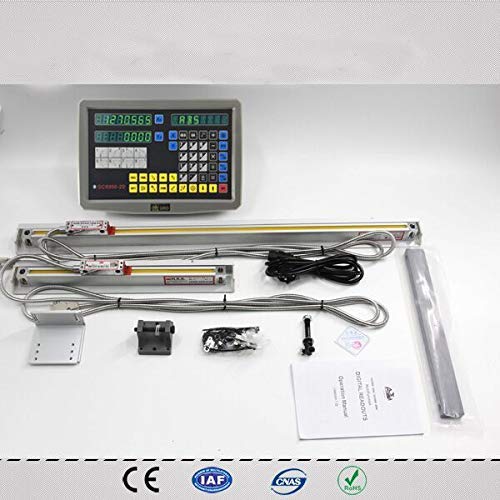

2/3 Axis Digital Readout and TTL Precision Linear Glass Scale DRO Encoder for Milling Lathe,Note: Display and Scales Sold Separately,pls Select the Size options!(3 Axis Digital Readout Display ONLY)

Brand: iMeshbean

Features:

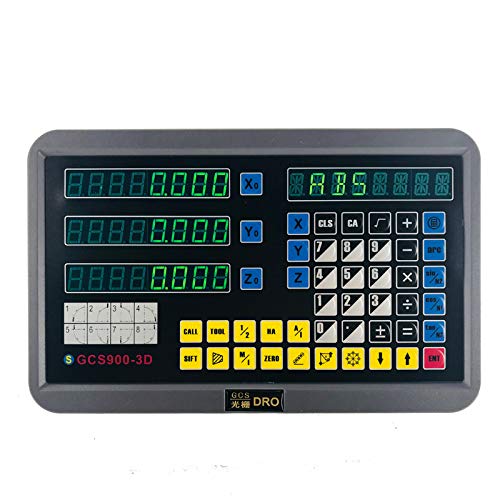

• The digital readout(DRO) in GCS series which produced by our company is a high precision instrument that can be used on lathe, grinding machine, milling machine, boring machine and EMD TO make the position detection;
• Resolution 5um , Accuracy ± 5um/ 0.0002";
• Have a good capacity of resisting disturbance,durable keyboard,easy to change;

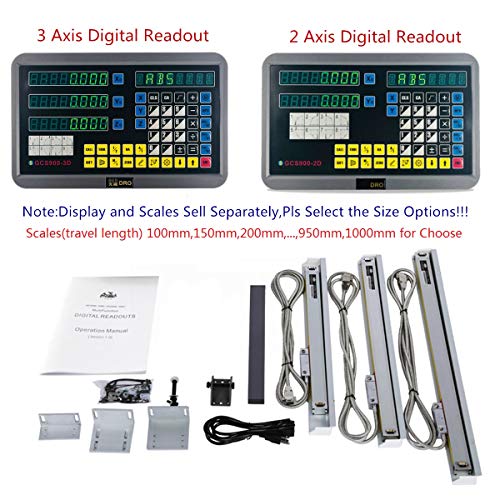

• 【Important Note】:Scales Actual physical length is 5.55 inch longer than travel length. Total length=travel length+5.55 inch .
• Size Digital Readout ONLY Means Display ONLY,many thanks for customer's review.

Part Number: 324-RZ

Details:

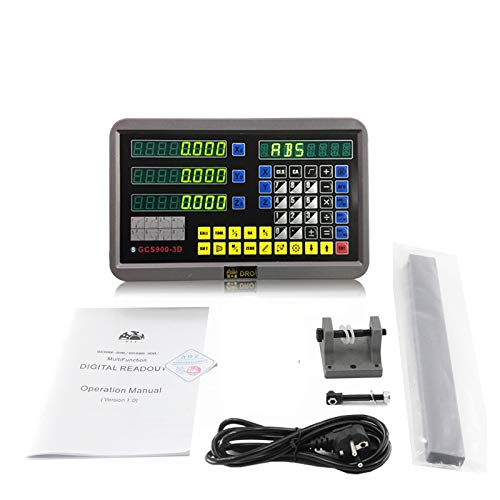

Basic functions

1:zero clearing

2:reset

3:mm/inch mode

4:ABS/INC coordinate conversion

5: 200sets sub datum

6:power off Memory;

7:center of1/2

8:liner error compensation

9:sleepping mode

10:Clear 200 sets Sdm datum;

11:ABS/INC mode

12:calculator

13:drilling of circumference

14:drilling of oblique line

15:machining of inclined plane

16:machining of circular arc

17:lathe function(match)

18:Rectangular lumen gradual processing

19:digital filtering

20.R function 21 R/D function

21.Radius/Diameter function (lathe machine )

22.Z+Y sum (lathe machine)

 In total ,it is a mutlifunctional 2 axis Digital Readout can be use on lathe machine, mill machine and other machines.

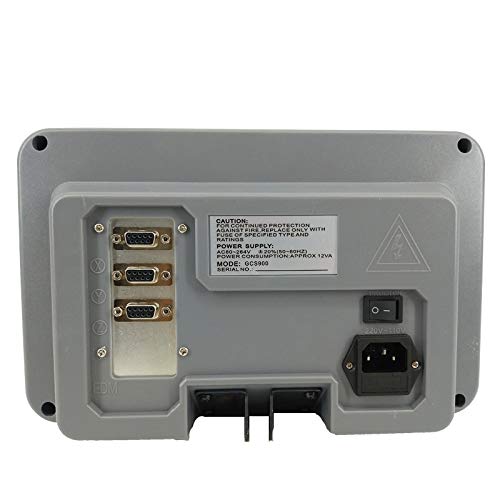

Technical parameters:

1.Voltage Range: AC 85V~260V/50HZ~60HZ

2.Power Consumption: 25VA

3.Coordinates: 1/2/3/4

4.Display: 8 digits display

5.Input Signal: TTL square wave EIA-442

6.Input Signal frequency: 100KHZ

7.Length resolution: 5um

8.Operation Keyboard: pressure sensitive key pad

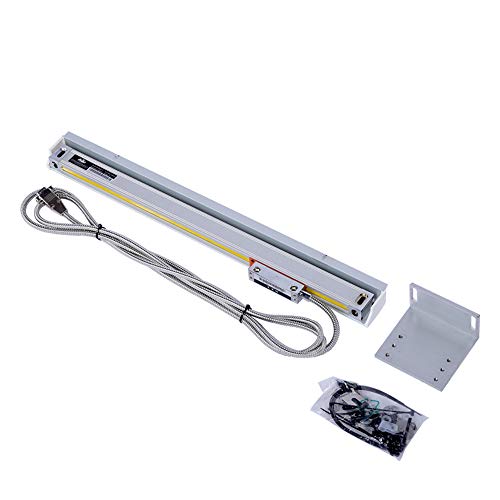

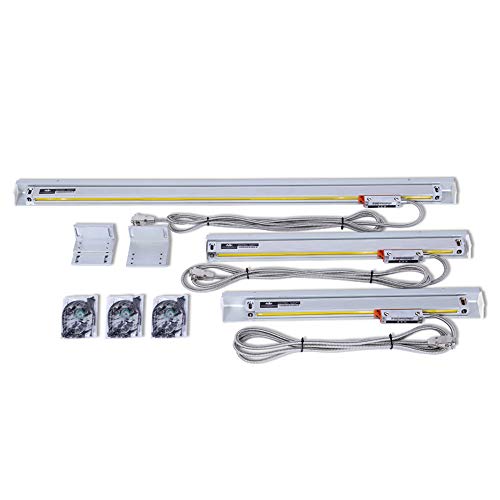

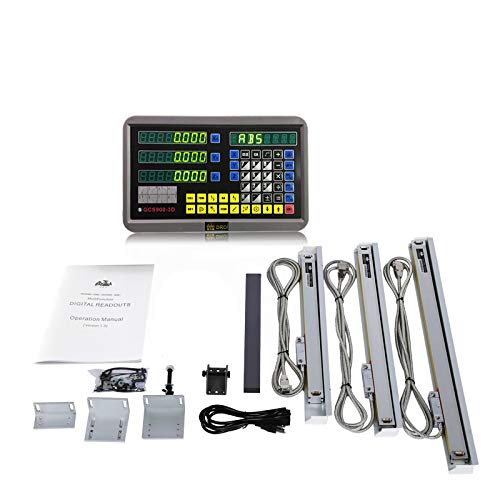

Linear Glass Scales Features

1.High Precision linear scale

2.Resolution : 5um (0.005mm) 0.0002"

3.Signal : TTL square /wave EIA-442

4.Grating pitch: 0.02mm (50LP/min)

5.Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)

6.Reference marks at interval of 50mm

7.Response Speed: 60m/min or 40ins/sec

8.Cable length: 3 Meter

EAN: 0651536208417
