2016 Mini pc with Barebone, Quad core J1900 CPU dc 12v x86 Desktop Computer with 2 Ethernet

Brand: Qotom

Binding: Personal Computers

model number: Q190S

Part Number: Q190S

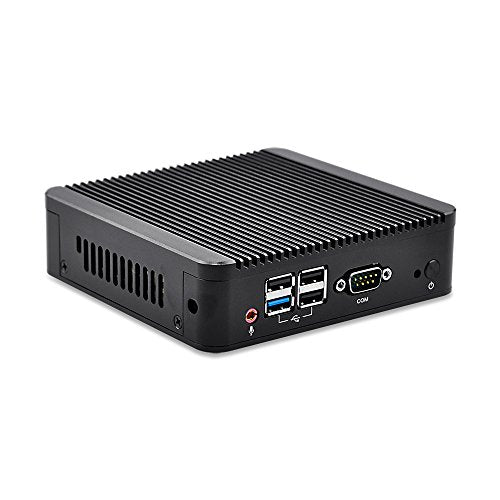

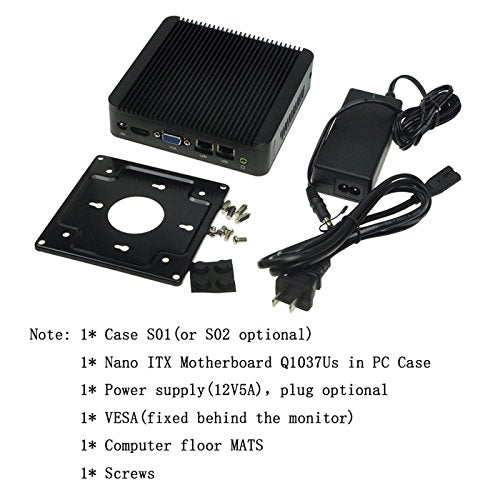

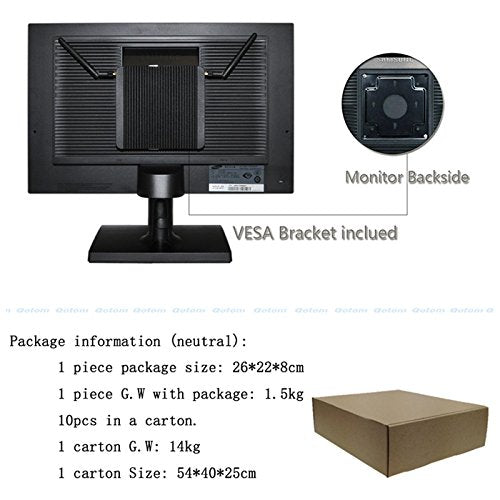

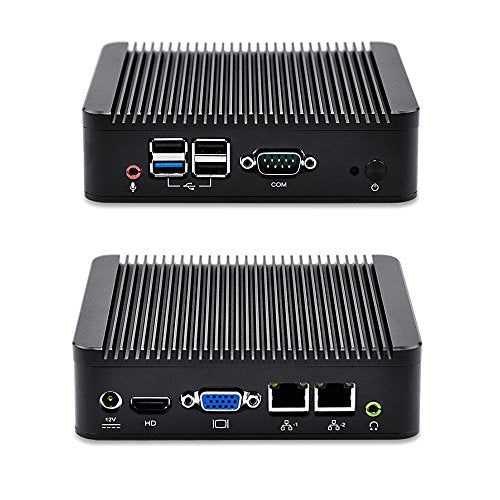

Details: Dual Lan Fanless mini pc Q190S with Intel Celeron Baytrail J1900 processor (No Screen): Size: Default S02:135*128*45mm (L* H *W)/S01:135*128*38mm optional(S01 only support ssd) Weight: 2kg Color: Black Onboard CPU: Intel Celeron Baytrail J1900 processor 2 G Quad Core Memory: NO ram (2G/4G/8G DDR3 RAM SO-DIMMs optional) Support DDR3 1333/1600 MHz 1 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory Storage: NO Hard disk (support a msata or sata ssd, or support 1 msata ssd+ 1 2.5 inch HDD at the same time) Onboard VGA: Intel HD Graphics LAN: RJ-45 port ( Realtek RTL8111E 10/100/1000 Controller) Wifi and Bluetooth: NO 802.11 b/g = 150MB 802.11 b/g/n = 300MB Audio: Realtek ALC662 HD Audio Power Consumption: 10W Chipset: Intel NM70 Front-Panel Connectors 1 ¡Á Power switch button ( Power LED ) 1 ¡Á HDD LED 1 ¡Á USB3.0 ports 3 ¡Á USB2.0 ports 1 ¡Á Microphone port 1 ¡Á Serial port Back-Panel Connectors 1 x DC12V DC input 1 x VGA Port 1 x HD video Port 2 x RJ-45 LAN Port 1 x Speaker port Operating System: NO OS. - Support Windows 7 | Windows 8 |Linux etc. (Nonsupport Win XP) Packing list: Q190S mini pc, Power supply, VESA Mount Bracket( Standard size) etc. Warranty: 1 Year

EAN: 0726630660079
