Aeromotive 13110 Pro-Series Extreme Flow EFI Fuel Pressure Regulator

Brand: Aeromotive

Features:

• Regulator can support up to 2000 HP; Designed for engines requiring high volume, high pressure fuel delivery
• Adjustable base pressure from 30-75 PSI with the spring installed, 75-125 PSI with the included optional spring
• Ideal for use with Aeromotive Pro-Series, Brushless 3. 5 and Brushless 5. 0 Electric Pumps using the 30-75 PSI spring; Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring
• Auxiliary ports available for nitrous applications, pressure gauges and transducers; References Vacuum/Boost on a 1: 1 ratio and includes two boost line adapters
• Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap

Binding: Automotive

model number: 13110

Part Number: 13110

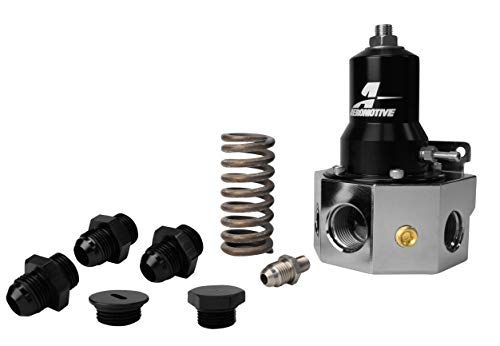

Details: The tuners choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3. 5 and Brushless 5. 0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1: 1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (pPrevents blow-off in high boost applications). Dedicated 1/8 NPT port. Includes Aeromotives radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. Also includes (1) ORB-10 return port with AN-10 flare adapter port plugs. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.

EAN: 0684980000313

Package Dimensions: 5.7 x 5.5 x 2.9 inches
