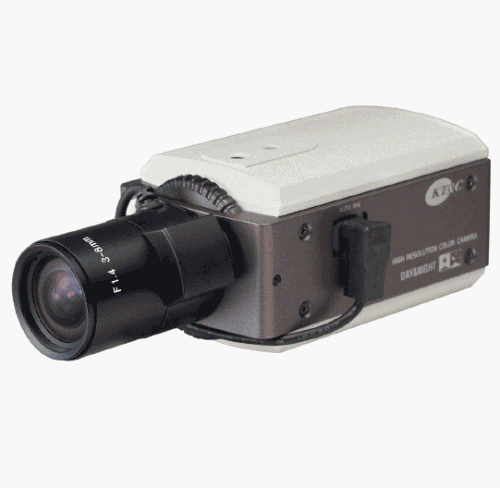

KT&C KPC-4000NH COLOR HIGH RES. CCTV BOX CAMERA (550 TV LINES)

Brand: KT&C

Features:

• Resolution: 550 TV Lines
• Image Sensor: 1/3" CCD
• Image: Color

Binding: Electronics

model number: KPC-4000NH

Part Number: KPC-4000NH

Details: 1/3" SONY Super HAD CCD C/CS Mount 550 TVL Model Brand KT&C Model KPC-4000NH Specifications Image Device 1/3" SONY Super HAD CCD Scanning System 2:1 Interlace Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V) PAL : 15.625 KHz(H), 50 Hz(V) H. Resolution 550 TVL Total Pixels NTSC: 811(H)x508(V) / PAL: 795(H)x596(V) Effective Pixels NTSC: 768(H)x494(V) / PAL: 752(H)x582(V) S/N Ratio More than 45dB (AGC Off) Min. Illumination 1.0 Lux / F2.0 Sync. System Internal(DC12V), Internal/Line Lock(AC24V, AC230V) Gamma γ = 0.45 Video Output 1.0 Vp-p Composite (75Ω) Lens C/CS Mount Electronic Shutter NTSC : 1/60sec / PAL : 1/50sec BLC On / Off AGC MIN / TYP / MAX White Balance ATW / PUSH LOCK / USER(R Gain, B Gain) OSD Built-in Language English Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C) Storage Temperature -4˚F ~ 140˚F (-20˚C ~ +60˚C) Humidity Less than 80% Power Comsumption DC12V / AC24V : AC24V (±10%), Max. 4W / DC12V (±10%), Max. 400mA Dimensions (mm) 65 (W) X 57 (H) X 122 (D) Weight Approx. 297 g

EAN: 0880123003863
