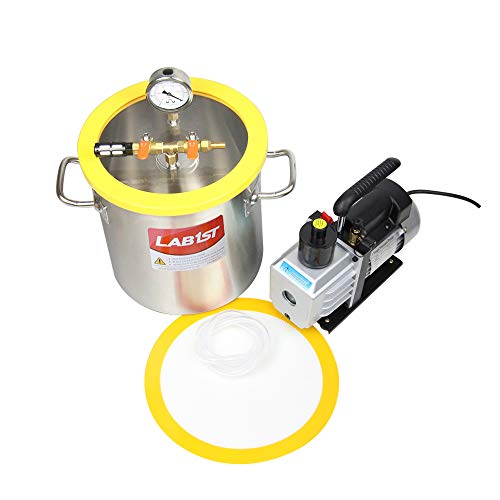

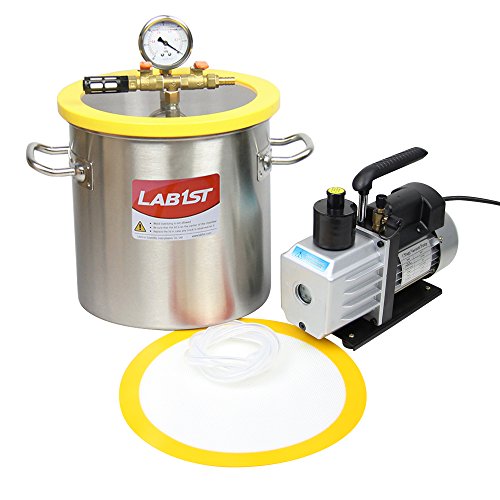

lab1st 3 Gallon Vacuum Chamber and 5 CFM Pump Kit for Degassing Silicone Epoxy

Brand: LAB1ST

Features:

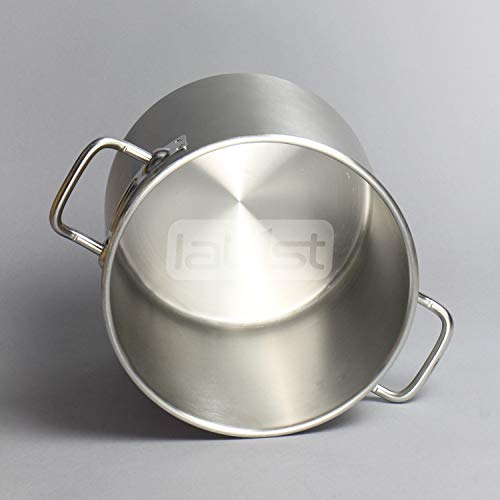

• Stainless steel chamber with welded handles for long-term air-tightness performance.
• Round edge at the top for the protection of silicone gasket.
• Gauge reading in both inHg and Mpa.
• All kits are vacuum tested for 24 hours before packaging. (leakage less than 2.0 inHg @ 24 hours)
• Two-sided flippable vacuum gasket for better durability and reliability.

Publisher: lab1st

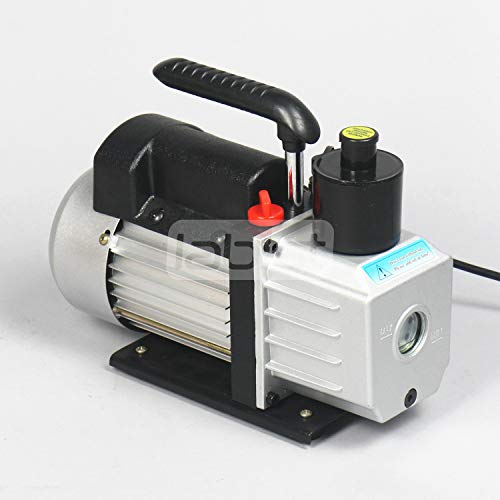

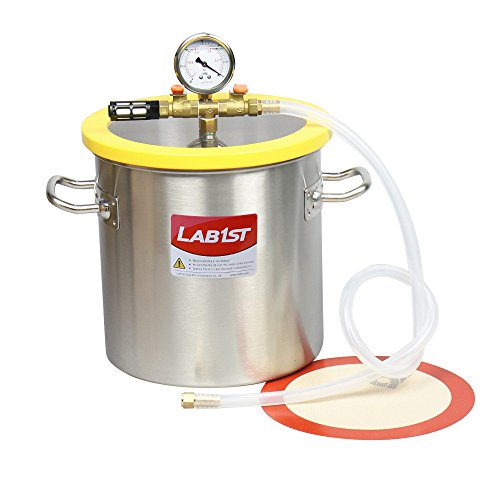

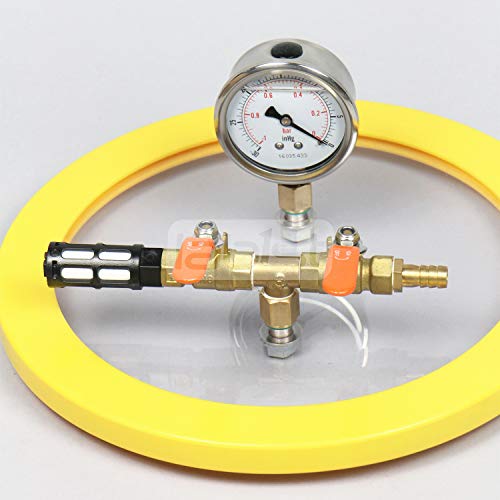

Details: This listing is for a 3.2 gallon (12.3 Liter, 25 cm diameter x 25 cm depth chamber) Hydrion Scientific brand stainless steel vacuum chamber and a 7CFM single stage 110V vacuum pump. It is in stock and ready to ship from our warehouse in Los Angeles, California. This item comes with 45 day warranty. Precaution: Stabilizing resin (such as Cactus Juice) can be corrosive to the lid of vacuum chamber. This chamber is not designed for wood stabilizing or wood turning. Product Specs & Part List of the Chamber: Vacuum Chamber: stainless steel, 25 x 25 cm (9.8 x 9.8"), with welded handles, 3.2 Gallon.Lid: Polycarbonate, 1/2" thickness, 30x tougher than Acrylic.Vacuum Gasket: silicone, resistant to Butane and other solvents.Vacuum Gauge Assembly: 0.5 inHg accuracy.Valve Assembly: very high quality air-tight brass valves, with 50um filter on vent port.Vacuum Hose: 3.3' / 1 meter food grade collapse-proof silicone hose, 3 mm wall thickness (8 mm I.D, 14 mm O.D).Vacuum Pump Adapter: 3/8“ hose barb to 1/4 SAE flare port.Accessories: 1 x PTFE tape, 2 x screw nuts, 2 x washers, 2 x wrench, 2 x Viton O-rings.Volume: 12.3 Liter / 3.2 Gallon.Net Weight: 3.7 kg / 8.2 lb.Dimension (W x D x H): 36 x 28 x 36 cm (14.2 x 11.0 x 14.2"). Product Specs & Part List of the Vacuum Pump: Model: RS-2-110.Rated Voltage: 110V.Pumping Rate: 5CFM.Ultimate Pressure: 5 PaMotor Power: 1/3 HP Oil Capacity: 250 mL.Dimensions: 290 x 120 x 240 mmWeight: 8.5KG.Inlet Connection Thread: 7/16”-20UNF (1/4” SAE Flare).

Package Dimensions: 20.0 x 16.0 x 15.0 inches
