LAPOND High Performance VFD Inverter VFD Drive 11HP 7.5KW 220V,Variable Frequency Drive for Motor Speed Control,SVD-PS Series(7.5KW)

Brand: LAPOND

Features:

• This is single phase VFD with single phase 220V INPUT and three phase 220V OUTPUT,only work with three phase asynchronous motor,If your motor is heavy load, pls choose a higher Horsepower vfd than your motor's or contact sales for model selection suggestion.
• This new series has better performance Vector controlled and stability to enable motor to achieve high torque in low speed rotation to increase motor working efficiency; work well with CNC controller, say Mach3 controller, support fast accelerate/deccelerate with external optional braking resistor and external potentiometer.

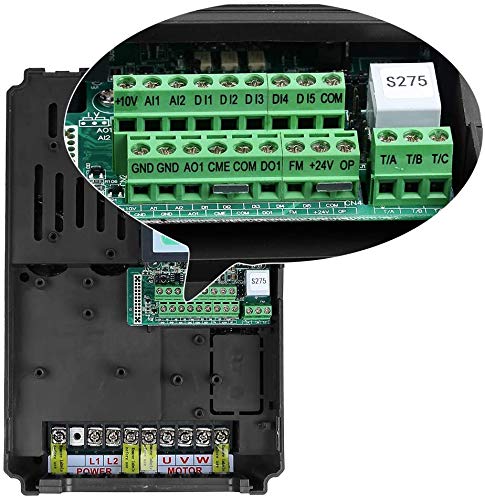

• Rich of digital and analogy control terminals for versitile control , optional MODBUS (RS485) extension, well controlled fans produce low acoustics noise.
• Application : spindle motor,lathe,milling,pumps,treadmills,conveyors,winding machine, mixer, extruder, slitter, compressor, ventilator,elevator,centrifuger and other speed control machines.
• We are the original factory,any technical issues do not hesitate to contact us;Warranty: 1 year!

Publisher: LAPOND

Details: SVD-PS Series has better performance stability and adopt DSP vector control to enable motor to achieve high torque in LOW SPEED rotation to increase motor working efficiency,We are the original manufacturer£¬welcome to consult with us! Parameters Suitable Motor:< 7.5KW(11HP) Model: SVD-PS7.5GB Power: 7.5KW 11HP 220V Input: 1PH AC220V¡À15% 50Hz / 60Hz Output: 3PH AC0-220V 0-500HZ Package include: 1xVFD;1x English User Manual book;6 x wiring terminal. Features ¡ñHigh startup torque and Excellent low speed stability;Strong overload capability. ¡ñAdvanced calculous PID closed-loop arithmetic, quick responding speed and high suitability. ¡ñRich of AI & I/O port, RS485 communication port, well work with Mach3 controller. ¡ñEasy PLC function can realize 16 legs of speed and inverter control function. ¡ñSupports various encoders such as differential encoder,open-collector encoder,resolver and UVW encoder. ¡ñSupports three control modes,sensorless vector control(SVC),closed-loop vector control(CLVC) and V/F control. ¡ñSupport add External braking resistor(recommend 100W-100 Ohm) and potentiometer(recommend 10K). ¡ñBroad voltage working area, normal running in 304V-456V. ¡ñAuto voltage regulation (AVR) technique, for ensuring the inverter load capability. ¡ñVarious control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes. ¡ñDead-time compensation and auto torque slip compensation function, can realize 180% high orque output at low frequency 0.25Hz. ¡ñUnique EMC design, can minimize inverter's pollution to power. ¡ñOverall reinforcement layer to suit all kinds of harsh environment.

Package Dimensions: 15.5 x 11.4 x 10.9 inches
