LCR Research

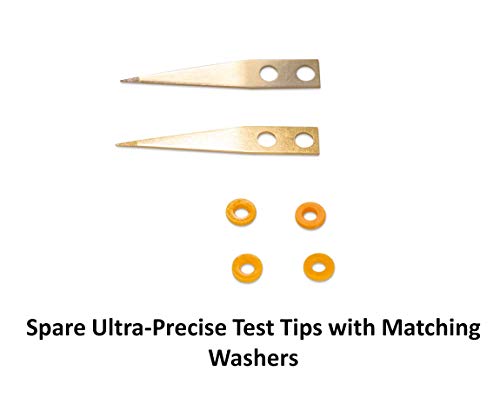

LCR Research Pro1-100KHz LCR Meter with 0.1% Accuracy/ESR Meter/Smart SMD Tweezers/with Spare Test Tips

$309.00 USD
$309.00 USD $309.00 USD
Sale Sold out

This price was last updated on 26 Feb 2023 08:41 PM EST. Details

X Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon.com at the time of purchase will apply to the purchase of this product. (More info)
Shipping calculated at checkout.

Brand: LCR Research

Features:

  • High accuracy – R: 0.1%, L: 0.2%, C: 0.2%

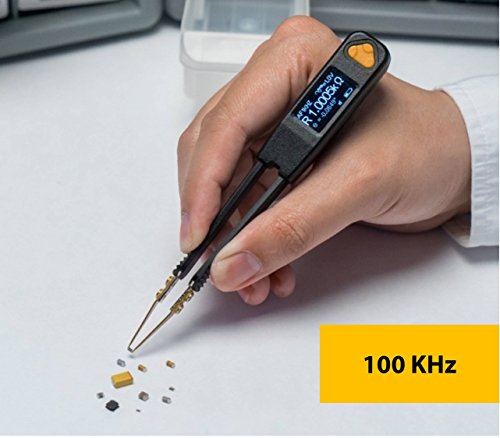

  • 5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz with 3 test voltage - 0.2Vrms, 0.5Vrms, 1.0Vrms
  • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 10nH to 1H
  • Additional diode testing function
  • One year warranty, lifetime support

Part Number: PR1-002UT

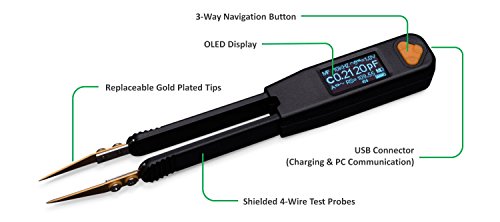

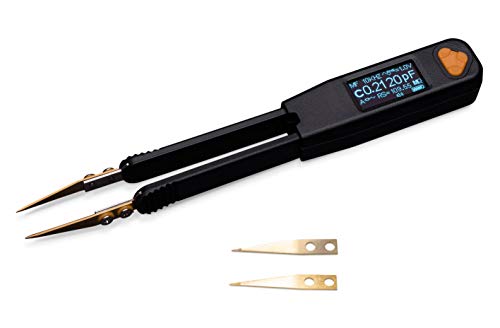

Details: The LCR Pro1 integrates a pair of tweezers like probes and an LCR meter into one compact, lightweight, battery powered device.

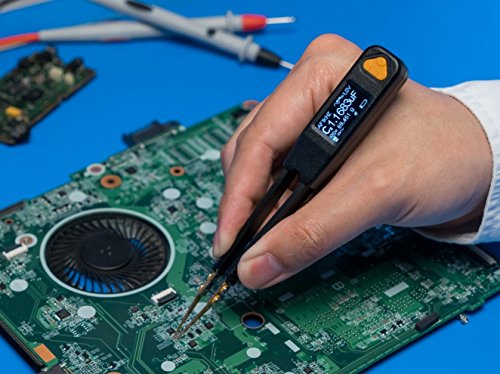

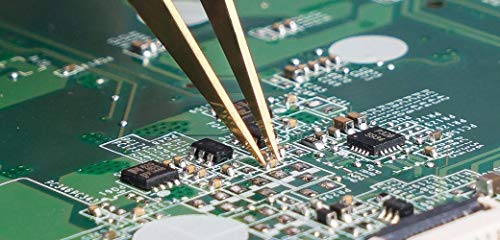

It is an all-in-one miniature device that provides a simple and efficient solution for not only measuring SMD components, but also making in-circuit debugging.

EAN: 0731882321685

Package Dimensions: 8.7 x 4.8 x 1.2 inches
