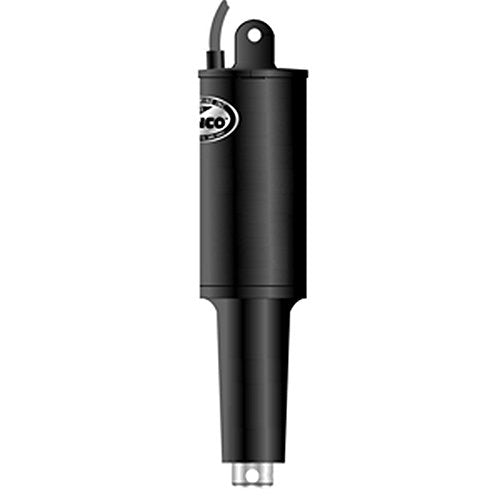

LENCO MARINE 101Xd 2 1/4' Stroke Extreme Duty

Brand: LENCO MARINE

Features:

• LENCO 12V 2 1/4" STROKE EXTREME DUTY ACTUATOR W/ 6'

model number: 15055-001

Part Number: 15055001

Details: 101 XD Extreme Duty Actuator. Part # (Superseded #) #15055-001 (101 XD-5) 12 Volt w/6' (1.83 m) leads with Deutsch connectors and 5/16" (.79 cm) mounting hardware. Solid stainless steel billet end, Included in Heavy Duty PerformanceTab Kits Stroke: 2-1/4" (5.72 cm) Length overall: 11-3/8" (28.89 cm) Length pin to pin: 10-3/4" (27.31) Diameter (upper housing): 2-1/2" (6.35 cm) Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing Corrosion proof Vandar mounts Stainless steel ram won't flex, even under extreme loads Double O-ring for maximum protection Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches Self-locking ballscrew locks into position and will not drift Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life Tough, high-torque motor easily transfers 750 lbs High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing Corrosion proof Vandar cap and mount, stands up to severe loads .

EAN: 0874847001236

Package Dimensions: 14.0 x 4.0 x 3.0 inches
