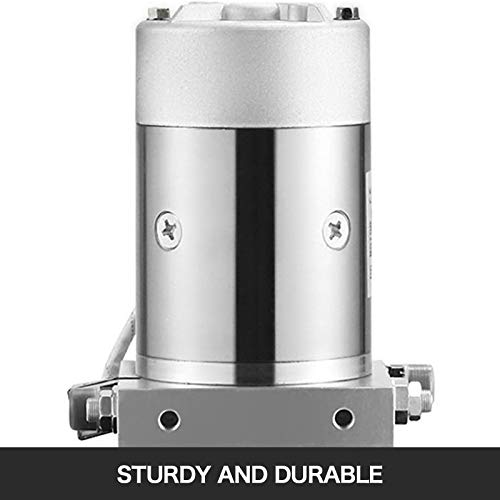

Mophorn 12V Hydraulic Pump Unit 4 Quart (Steel,Double Acting)
This price was last updated on 1 Mar 2023 08:24 AM EST. Details
Couldn't load pickup availability
Brand: Mophorn
Color: Steel,Double Acting
Features:
- ✔ Tank Capacity:4 Quart.Displacement of hydraulic pump: 2GPM. Relief valve pressure: 22 MPA (3200 PSI Max).

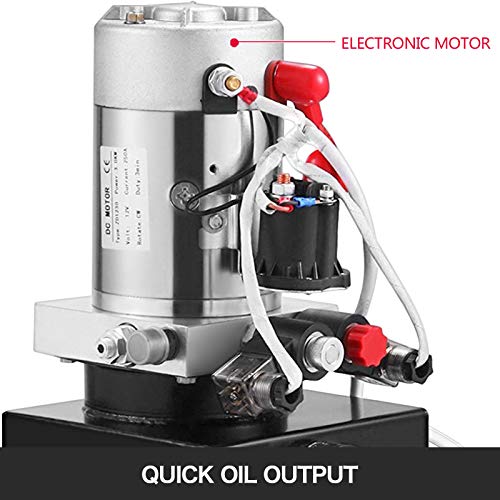

- ✔ Hydraulic pump rated speed: 2850R/MIN.Motor Power:1.6 KW;Motor voltage: DC 12V.1500 PS Max Relief Setting on B port.SAE # 6 Port, Horizontal mount.

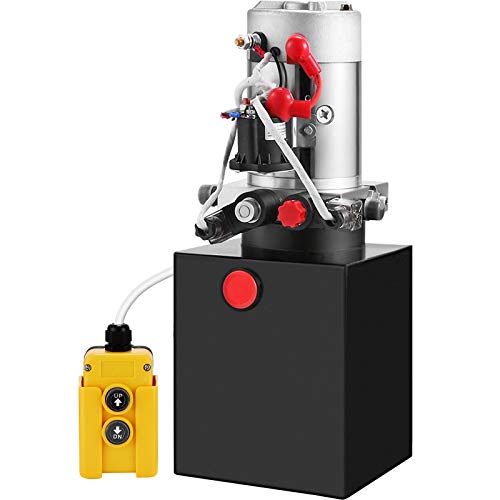

- ✔ Double acting power-up/power down.Hand held pendant with about 15 foot( 4.5m)removal cord and start solenoid.
- ✔ This hydraulic pump is the perfect replacement pump for 12V DC remotely controlled hydraulic systems; The hydraulic power unit is used as a fuel supply device through external pipe system connected to a number of hydraulic cylinder to control multiple sets of valve movement.

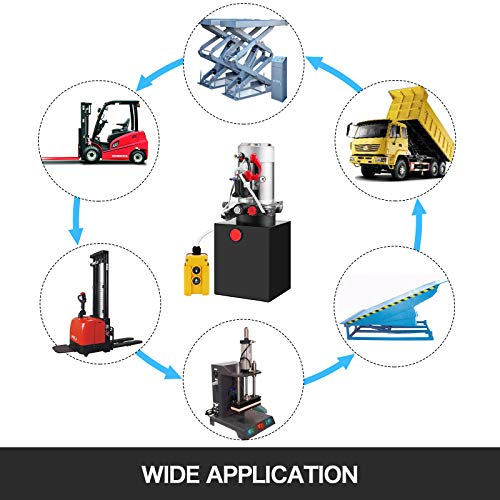

- ✔ This unit is suitable for control of a set of double-acting cylinder. Widely used in small dump truck, hydraulic winch, etc.
Publisher: Mophorn
Details:
Hydraulic Pump 4 Quart Double Acting
Introduction:
This power unit designed for medium and small lift platform, by ac motor, multi-purpose integrated block, hydraulic valve and other components combined into one. Reduced lift platform controlled by electromagnetic unloading valve, falling speed is controlled by a built-in balancing valve. Back-up manual unloading valve is used to power down. It's widely used in stacker, small and medium-sized lifting platform and various industrial fields
Specifications:
Material of tank: 4 Quart Steel
Rated speed: 2850R/MIN
Motor voltage: DC12-DV24
Double acting Power-Up/Power Down
1500 PS Max Relief Setting on B port
SAE # 6 Port, Horizontal mount
Fluid choice determined by operating environment( can be used for colder climates)
Perfect replacement pump for 12VDC controlled hydraulic systems
Directions for use:
According to hydraulic principle diagrams, with clean connecting hydraulic power unit and oil cylinder tubing
According to the motor and the power of the electromagnetic valve marked characteristics( ac, dc voltage is properly connected. )
Inching motor observe any abnormal phenomenon. In actuators,without load, start the electric, short run test, check whether all the parts run smoothly, determine and correct after loading step by step to normal operation
Package Dimensions: 21.1 x 10.9 x 10.0 inches
