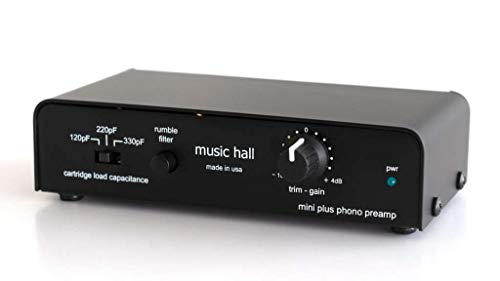

Music Hall mini plus MM/MC Phono Preamp/Headphone Amp

Brand: Music Hall

Features:

• The music hall mini plus phono pre-amp is a perfect solution for attaching a turntable to today's audio equipment. It's a low-noise, high quality phono pre-amp designed to work with moving-magnet and high-output moving-coil cartridges. The chassis helps ward off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable.
• Ultra quiet MM phono amp. High-grade headphone amp. High-quality 1/8" headphone/line output. Gold-plated RCA inputs and outputs. Energy efficient external switch mode power supply. Worldwide compatibility. Rigid chassis construction. Vibration damping feet.
• Hundreds of hours were spent listening to and developing this phono stage during which we discovered a couple of unique and serious sound features:
• The addition of cartridge load capacitance - a typically overlooked component, of playing MM cartridges. This adjustment allows you to fine tune the pre-amp to more closely match the characteristics of your chosen MM cartridge.
• The trim-gain control - this allows you to boost or reduce the output of the pre-amp to get an ideal match in volume between the output of your cartridge, the volume level of the record you're playing, and your system's characteristics. This is an outrageously useful control and one that makes a magnificent improvement to the overall sound from your turntable and record collection.

Binding: Electronics

Publisher: Music Hall

Details: specifications input/output connectors: RCA, 1/8" TRS stereo gain: 41.51 dB gain @ 1kHz at "0" setting 31.64 dB gain @ "-10" setting 45.66 dB gain @ "+4" setting input impedance: 47k Ohms output impedance: 32 Ohms headphone, 470 Ohms RCA frequency response: 3 Hz to 36 kHz equalization: RIAA +/- 1 dB, 14 Hz to 23 kHz rumble filter: 20Hz THD: .005% @ 1kHz power: 15V DC indicator: 1 power LED size: 5.5"w x 3.5"d x 1.25"h weight: 2 lbs. pkgd.

Package Dimensions: 10.0 x 6.3 x 3.8 inches
