Qotom
Qotom 4 LAN Mini PC Q190G4U-S02 with 8GB RAM 128GB SSD, Intel Celeron J1900 Processor, Quad core 2.0 GHz, VGA Mini PC Firewall
This price was last updated on 1 Mar 2023 08:11 AM EST. Details
Couldn't load pickup availability
Brand: Qotom
Features:
- CPU: Intel Celeron Processor J1900 (Quad-Core 2M Cache, 2 GHz, up to 2.42 GHz)
- 4 x Intel I211-AT- 10/100/1000 Controller
- Aluminum alloy Shell. Fanless No Noise
- Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.
- Preload inactive Windows 7 for test. It supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc. Please reinstall OS by yourself.
Binding: Personal Computers
Platform: PC
Publisher: QOTOM
Details: Qotom Q Series Mini PC Q190G4U-S02:
Size: 135 x 128 x 45mm

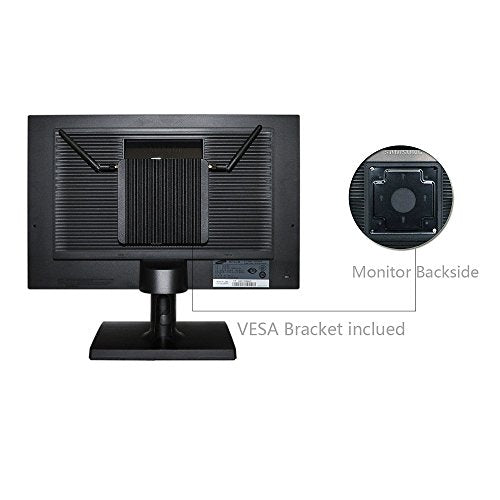

The packaging box contains power supply, VESA bracket, SATA cable, 2 antennas (if you choose wifi)

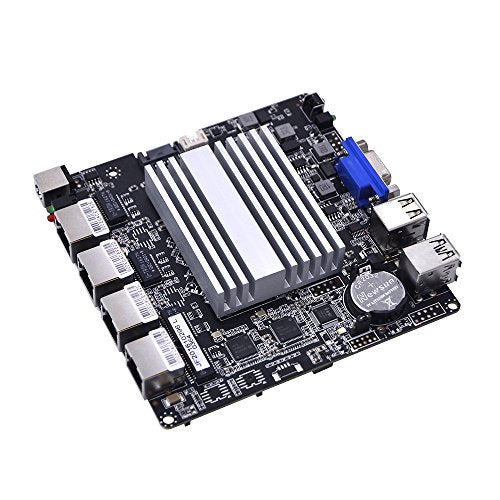

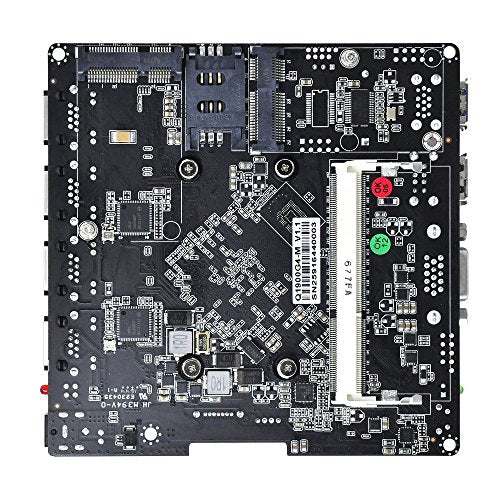

We can provide the motherboard Q1900G4-M User Manual download link.
Warranty: One Year
Onboard CPU: Intel Celeron Processor J1900 (Quad-Core 2M Cache, 2 GHz, up to 2.42 GHz)
Integrated graphics: Intel HD Graphics
Power Consumption: 10W, running 24/7
LAN: 4 x Intel I211-AT- 10/100/1000 Controller
1 x Memory slot. support 1333/1600MHz DDR3L 1.35V SO-DIMM. MAX 8GB RAM.
1 x mini PCIe slot for mSATA SSD. 1 x SATA Connector for 2.5" SATA SSD/ HDD
1 x Half Mini PCIE slot for WIFI. It only support wifi USB signal and only support AP-mode in pfSense. Please install other OS if necessary.

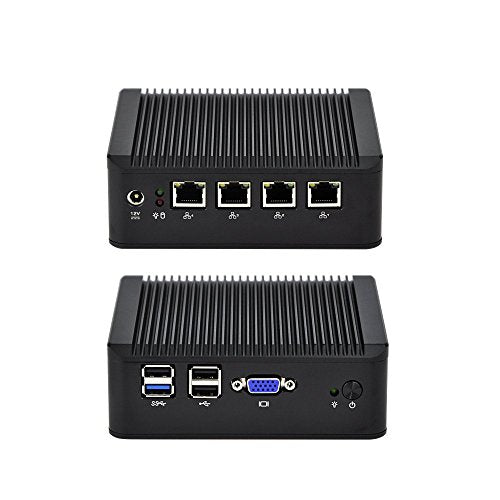

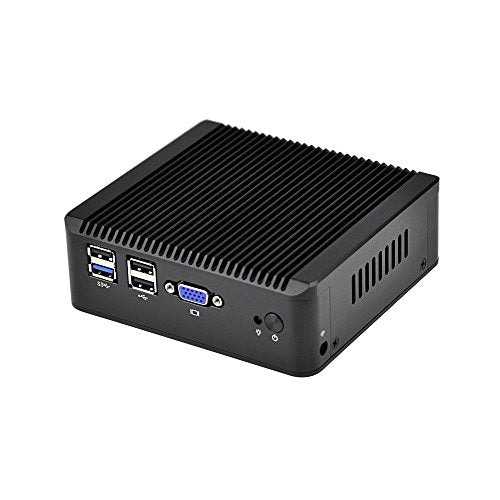

Connectors:
1 x Power on/off button
3 x USB 2.0 ports
1 x USB 3.0 ports
1 x HD Video connector
1 x Serial port
1 x 12V DC input

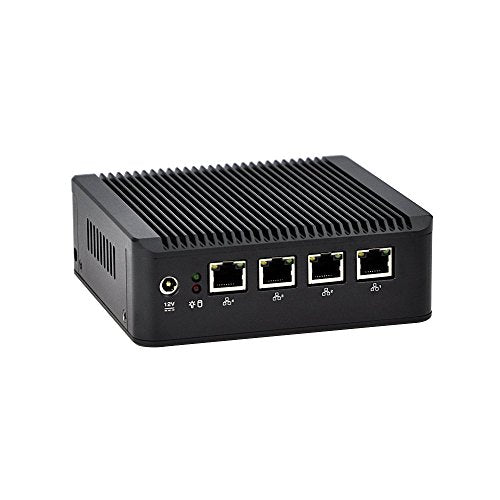

4 x Intel RJ-45 Ports
Speak Out / Mic In Connector
1) Fanless, quiet, cheap, small, compact, with 4 Intel Gigabit NIC, Mini PC Q190G4U is a perfect fit for a LAN or WAN router, firewall, proxy, VPN appliance, DHCP Server, DNS Server, etc.
2) Preload inactive Windows 7 for test by default. Please reinstall OS by yourself. It supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc. F11 key boot from USB Drive. Delete key enter BIOS.
3) DHL Express to USA, 3 ~ 5 working days, but can not deliver to PO BOX, APO/ FPO/ DPO address. Phone number is necessary for DHL Express.
Package Dimensions: 10.6 x 9.1 x 3.5 inches
