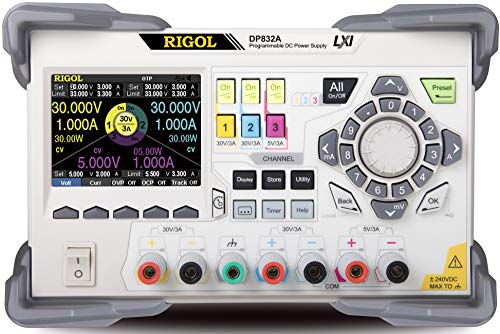

Rigol DP832A (3 Channels) Programmable DC Power Supply

Brand: Rigol

Features:

• Power Supply with 2 0-30V/3A channels, 1 5V/3A channel, 1 mV/1 mA measurement resolution, monitoring, analysis, trigger I/O, and LAN interface
• 3 Outputs; total power up to 195W
• Low Ripple Noise <350 uVrms/2mVpp
• Fast transient response time: <50 us
• Channel isolation: CH1 || CH2,CH3

Publisher: Rigol

Details: Rigol DP832A - Programmable DC Power Supply (3 Channels) Channel isolation: CH1 || CH2,CH3 OVP/OCP/OTP protection functions Built in V, A, W measurements and waveform display Support for output Delay, Analysis, Monitor, and Preset functions 3.5 inch FTF DisplaySCPI Command OverviewSCPI (Standard Commands for Programmable Instruments) is a standardized instrument programming language that is built upon the standard IEEE488.1 and IEEE 488.2 and conforms to various standards (such as the floating point operation rules in IEEE754 standard, ISO646 7-bit coded character for information interchange (equivalent to ASCII programming)). This section introduces the syntax, symbols, parameters and abbreviation rules of the SCPI commands.SCPI Status RegistersAll the SCPI instruments execute the status register operations in the same way. The status system records the various instrument states into three register sets: status byte register, standard event register, and questionable status register sets. The status byte register records the advanced summary information reported by other register sets. The SCPI status systems of the DP800 series multi-channel models.Remote Controls Methods User-defined Programming You can program and control the instrument using the SCPI (Standard Commands for Programmable Instruments) Send SCPI Commands via the PC Software You can control the power supply remotely by sending SCPI commands via the PC software (Ultra Sigma) provided by RIGOL.Build Remote CommunicationYou can build the remote communication between DP800 and PC over USB, LAN, RS232 or GPIB (option, can be extended via the USB-GPIB interface converter) interface.OverviewThe Rigol DP832A is a very high-quality programmable laboratory power supply with three switchable outputs (+30 V/3 A, +30 V/3 A and +5 V/3 A) and a maximum power output of 195 W.Like a

Package Dimensions: 22.0 x 15.0 x 12.0 inches
